340 KG Four Bar Lawn Mower Lift Manual Model Number: T-5500
Capacity: 340.0 KG
Collapsed Height: 11.5 cm
Extended Height Platform: 78.7 cm
Extended Height Wheel Brackets: 68.6 cm
Lifting Operation: Manual

340 KG Four Bar Lawn Mower Lift Air&Manual Model Number: T-5501
Capacity: 340.0 KG
Collapsed Height: 11.5 cm
Extended Height Platform: 78.7 cm
Extended Height Wheel Brackets: 68.6 cm
Lifting Operation: Manual & Air

LEARN MORE

159 KG Two Bar Lawn Mower Lift Manual Model Number: T-5335A
Capacity: 159.0 KG
Collapsed Height: 114.0 mm
Extended Height: 584.0 mm
Lifting Operation: Manual

LEARN MORE

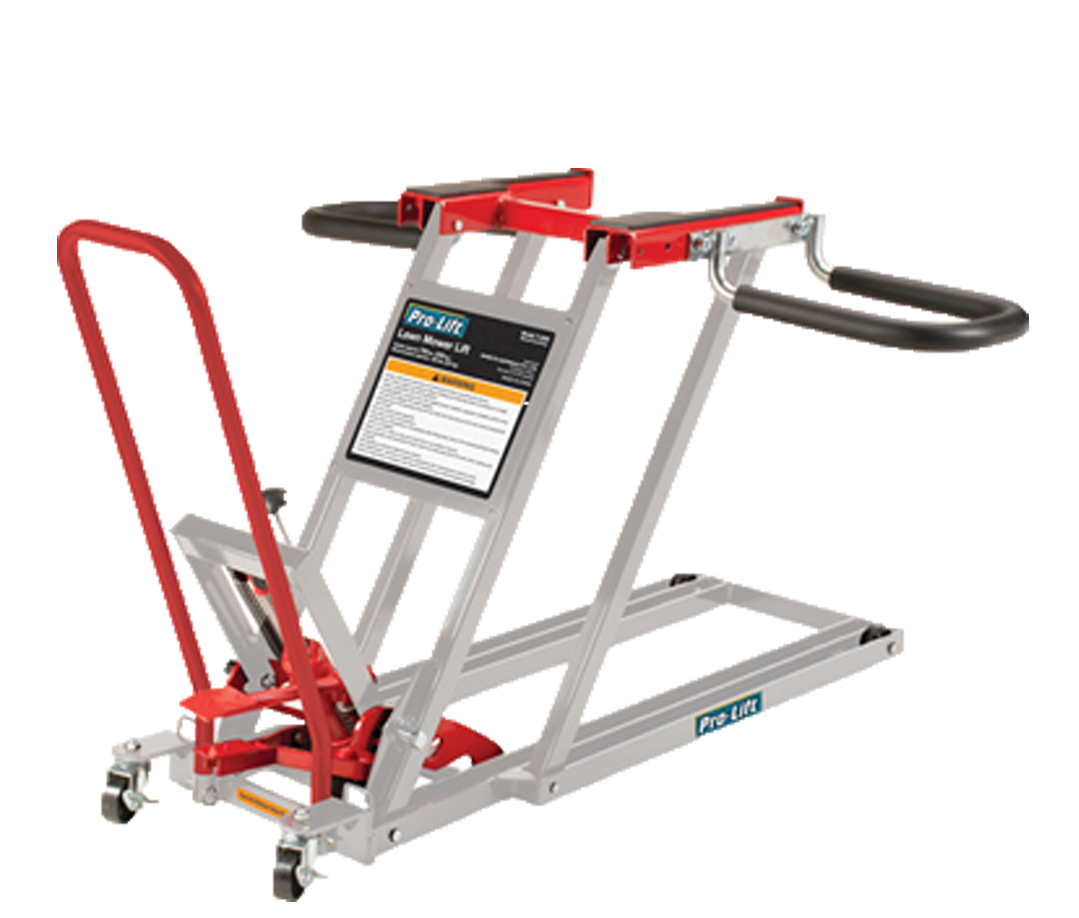

340 KG Four Bar Lawn Mower Lift Manual

Product Code: T-5500

OWNERS MANUAL FOR T-5500 SHINN FU FULL RANGE CATALOGUE

SOLD AUSTRALIA WIDE THROUGH

FEATURES
SPECIFICATIONS

- Ideal for routine maintenance such as deck repair, blade work, cleaning and more
- Platform Capacity is 340.0 KG
- Wheel Bracket Capacity is 227.0 KG
- Over 27" of clearance gives more working space than competitive D.I.Y lifts
- Frame features dual Height Locks for stable and safe prolonged use (5 positions)
- Extending Wheel Brackets for use with all mowers up to a 51.18" to 56.59" front wheel span
- Constructed from thick, heavy duty welded steel to support the rated capacity on the saddle and wheel brackets
- Easy to assemble, use, and store, lift and lower in 3 easy steps

- Overall Dimensions (LxWxH): 137.2 x 149.9 x 81.3 cm
- Overall Weight: 70.0 kg
- Lifting Operation: Manual Footpump, Handturn Release Valve

- Platform lifting capacity: 340 KG
- Platform Min. Height: 11.5 cm
- Platform Max. Height: 78.7 cm
- Platform Width: 43.2 cm

- Wheel Bracket lifting capacity: 227 kg
- Wheel Bracket Min. Height: 4.0 cm (Touches ground, can drive on)
- Wheel Bracket Max. Height: 68.5 cm
- Wheel Bracket Extendable Inner and Outer Wheel Span Range:
    1. 55.5 - 121.5 cm
    2. 69.5 - 135.5 cm
    3. 83.5 - 149.5 cm

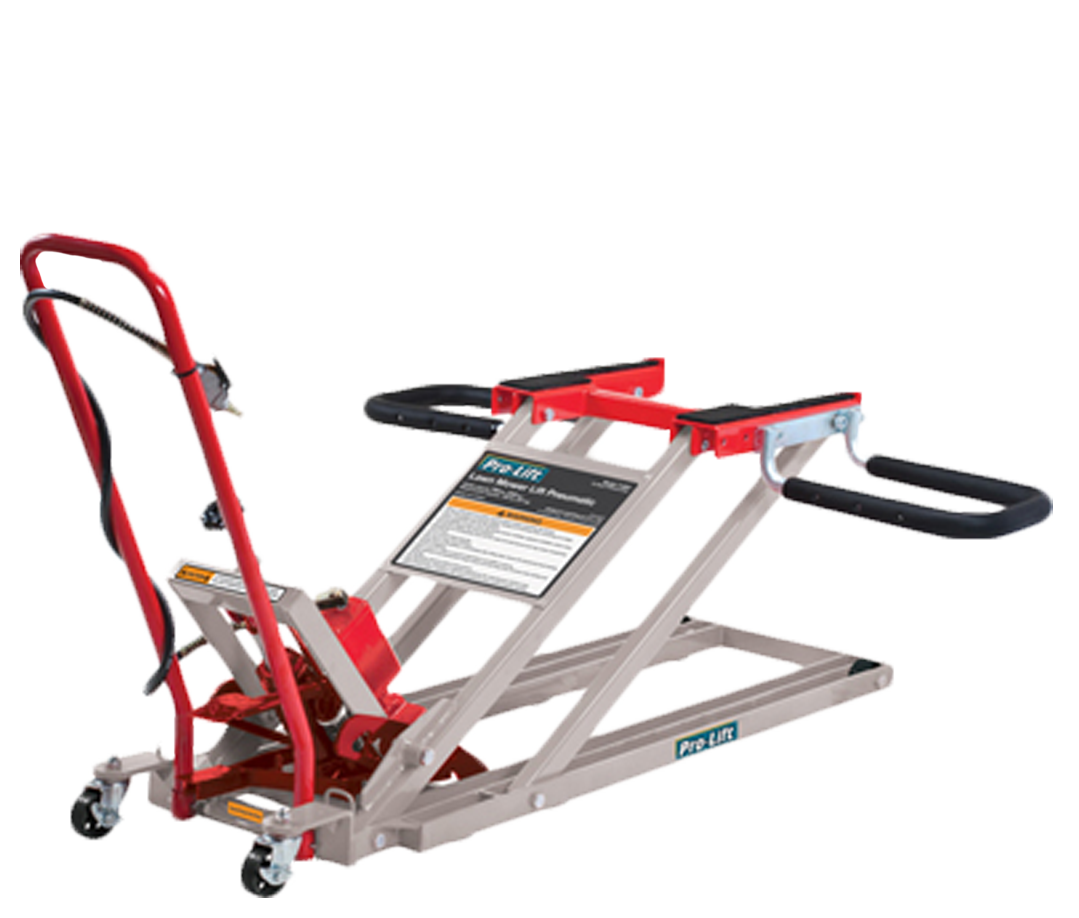

340 KG Four Bar Lawn Mower Lift Air&Manual

Product Code: T-5501

OWNERS MANUAL FOR T-5501 SHINN FU FULL RANGE CATALOGUE

SOLD AUSTRALIA WIDE THROUGH

FEATURES
SPECIFICATIONS

- Ideal for routine maintenance such as deck repair, blade work, cleaning and more
- Installed with Air Turbo Motor to effortless raise up the lift (Requires 90-175 PSI / 7-12 BAR)
- Platform Capacity is 340.0 KG
- Wheel Bracket Capacity is 227.0 KG
- Over 27" of clearance gives more working space than competitive D.I.Y lifts
- Frame features dual Height Locks for stable and safe prolonged use (5 positions)
- Extending Wheel Brackets for use with all mowers up to a 51.18" to 56.59" front wheel span
- Constructed from thick, heavy duty welded steel to support the rated capacity on the saddle and wheel brackets
- Easy to assemble, use, and store, lift and lower in 3 easy steps

- Overall Dimensions (LxWxH): 137.2 x 149.9 x 81.3 cm
- Overall Weight: 73.0 kg
- Lifting Operation: Manual Footpump, Air-Actuated Pump (90-175 PSI), Handturn Release Valve

- Platform lifting capacity: 340 KG
- Platform Min. Height: 11.5 cm
- Platform Max. Height: 78.7 cm
- Platform Width: 43.2 cm

- Wheel Bracket lifting capacity: 227 kg
- Wheel Bracket Min. Height: 4.0 cm (Touches ground, can drive on)
- Wheel Bracket Max. Height: 68.5 cm
- Wheel Bracket Extendable Inner and Outer Wheel Span Range:
    1. 55.5 - 121.5 cm
    2. 69.5 - 135.5 cm
    3. 83.5 - 149.5 cm

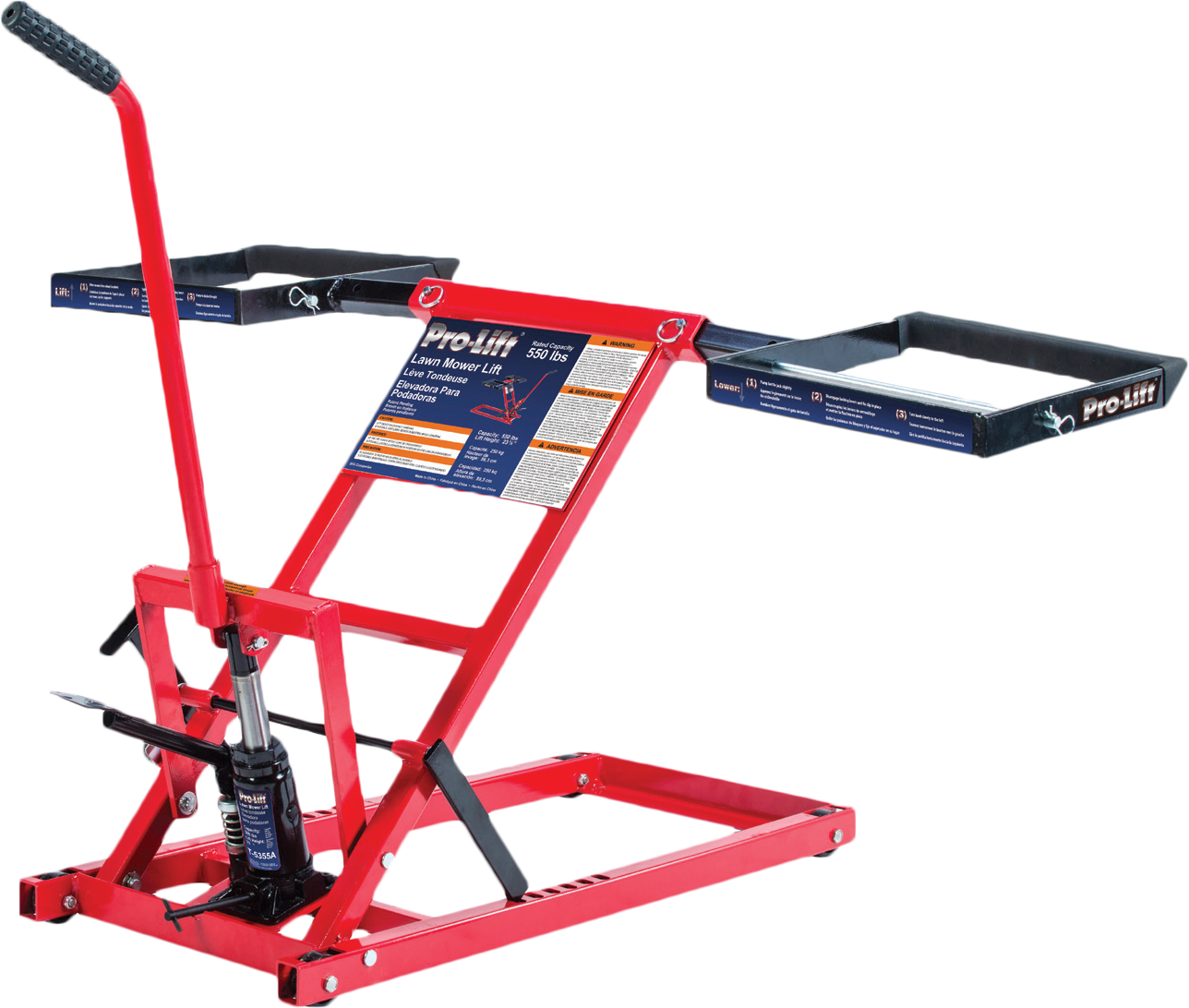

159 KG Two Bar Lawn Mower Lift Manual

Product Code: T-5335A

OWNERS MANUAL FOR T-5335A SHINN FU FULL RANGE CATALOGUE

SOLD AUSTRALIA WIDE THROUGH

FEATURES
SPECIFICATIONS

- Saddle Capacity is 159.0 KG
- Over 23" of clearance gives more working space than competitive D.I.Y lifts
- Ideal for routine maintenance such as deck repair, blade work, cleaning and more
- Constructed from thick, heavy duty welded steel to support the rated capacity on the saddle and wheel brackets
- Proven design lifts all mowers with a 40.74" to 49.38" front wheel span
- Easy to assemble, use, and store, lift and lower in 3 easy steps

- Lifting capacity: 159 KG
- Collapsed Height: 114.0 mm
- Extended Height Wheel Brackets: 584.0 mm
- Base Size (L x W): 851.0 mm x 106.0 mm
- Net Weight: 55.0 KG
- Lifting Operation: Manual
